Heroku free Dyno with Cloudflare free SSL

Assume you've configured your Heroku apps to go through Cloudflare, now you want to enable the free SSL on Cloudflare.

On Cloudflare

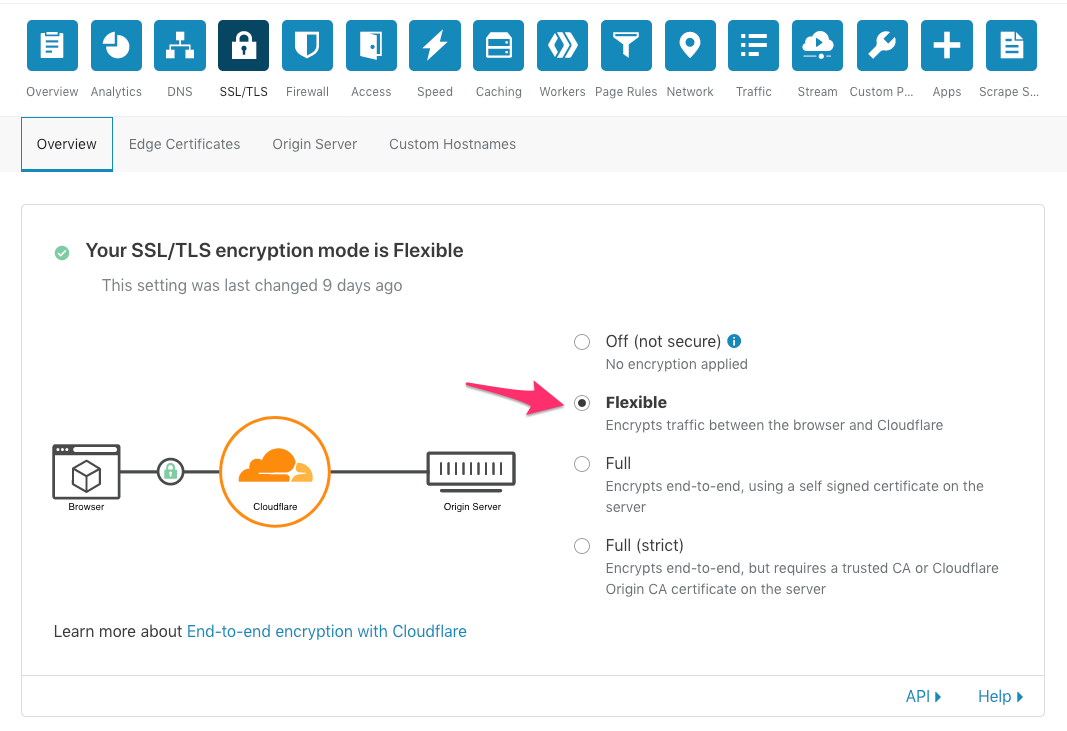

Go to Cloudflare dashboard. Under the SSL/TLS nav menu, turn on the "Flexible" mode to serve your site over HTTPS.

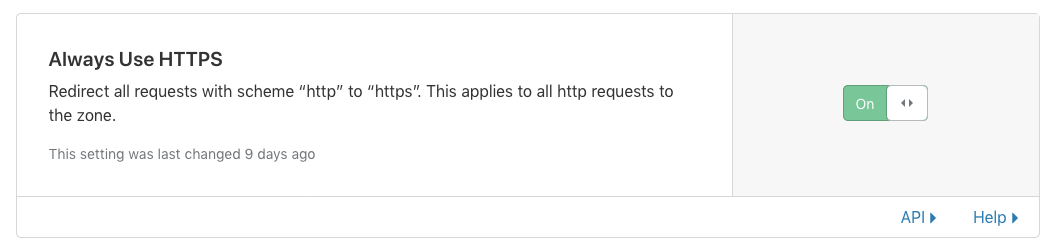

Then in the Edge Certificates tab, turn on the Always Use HTTPS option to redirect HTTP to HTTPS.

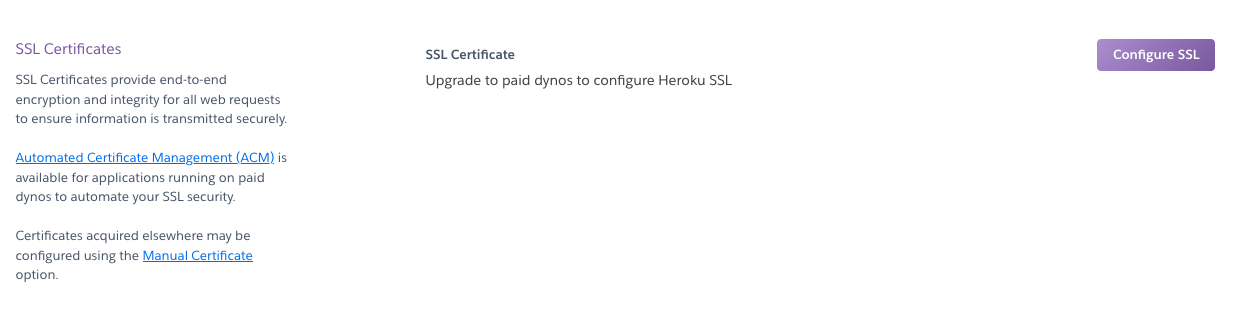

Also make sure there is no Certificates configured on Heroku. It should be empty for free Dyno, but if you've downgraded from a paid plan, then there might be leftovers.

At this point your app should run on HTTPS and any HTTP traffic will also be redirected.

On your Rails app

With this configuration, I bumped into this error when I try to submit a form in the Rails app.

HTTP Origin header (https://example.com) didn't match request.base_url (http://example.com)

Can't verify CSRF token authenticity
ActionController::InvalidAuthenticityToken (ActionController::InvalidAuthenticityToken)

After a few Google searches, it looks like it's a common problem and I'll need to modify the proxy server to forward the header properly.

Don't know how to do that on Heroku, so I ended up adding a custom middleware as commented in the rails issue . Works like a charm, thanks @tonytonyjan 👏!

# https://github.com/rails/rails/issues/22965
require "json"

class CloudflareProxy
  def initialize(app)
    @app = app
  end

  def call(env)
    return @app.call(env) unless env["HTTP_CF_VISITOR"]

    env["HTTP_X_FORWARDED_PROTO"] = JSON.parse(env["HTTP_CF_VISITOR"])["scheme"]
    @app.call(env)
  end
end

require "cloudflare_proxy"
config.middleware.use CloudflareProxy

Resources

• Configure Cloudflare and Heroku over HTTPS – Cloudflare Support
• Request origin does not match request base_url · Issue #22965 · rails/rails
